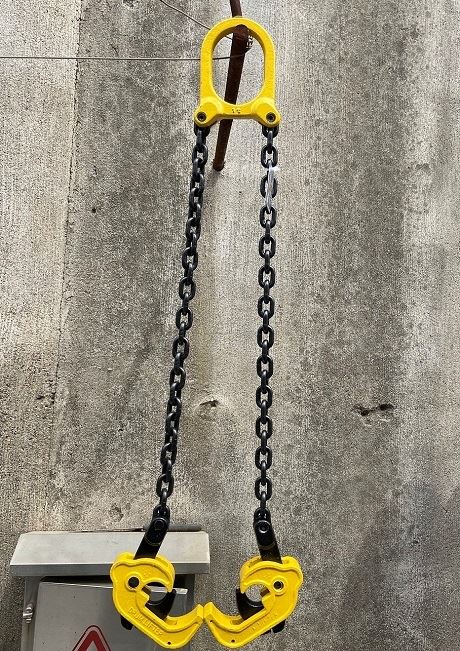

Drum Lifting Clamps are suitable for hoisting and managing steel drums, plates, sub-assemblies, steel frames, etc. It is also suitable for Civil Engineering, and building and load positioning of unbalanced loads. The clamps consist of a two-leg sling fitted with two clamps, which are provided with a system of drum or pinch.
➢ For safe lifting and transporting of steel (oil) drums vertically.
➢ The SL steel drum clamps can be used single or per pair as well.
➢ Can be used to tilt, lift or turn drums.
➢ This clamp is extremely light weight and very quick and easy to use.
➢ Clamps firmly on 2-leg Grade 80 chain ling.
➢ Can be used to lift single or two drums with one leg each at the same time.
|
Product Code |
W.L.L |
Jaw opening |
Chain Size |
Ring Size |
Total Reach |
Weight |
|||
|
Dia. |
Length |
Dia. |
Inside |
Outside |
|||||
|
SL1 |
1T |
0-25 |
6mm |
500mm |
13mm |
66 |
93 |
690mm |
3.4KG |
Instructions For Use
Suspend the sling fitted with the clamps.
Bring the clamping jaws into contact with the edge of the drum.
Check the two clamps are correctly positioned and then perform lifting.
To release the clamps: Lay the drum down stable and take off clamps manually.
