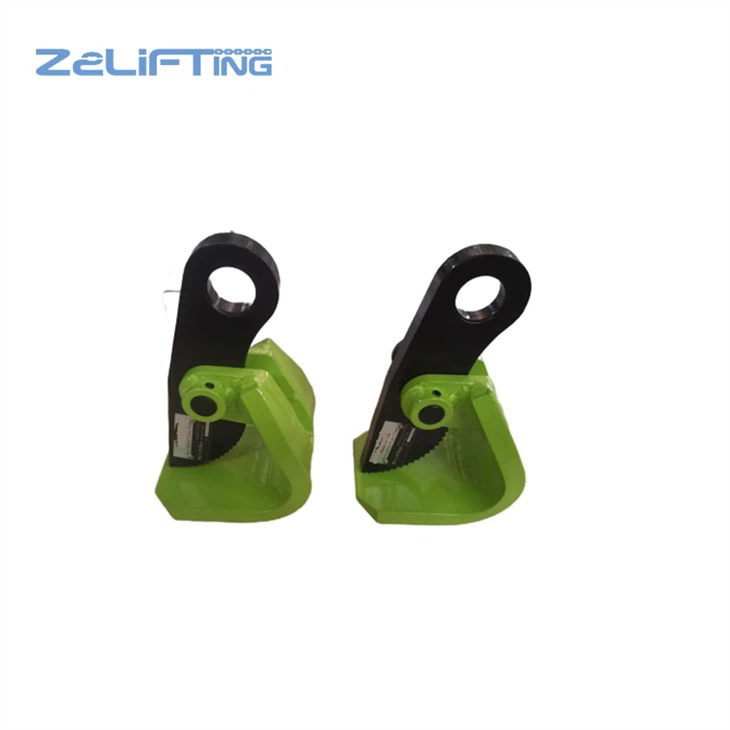

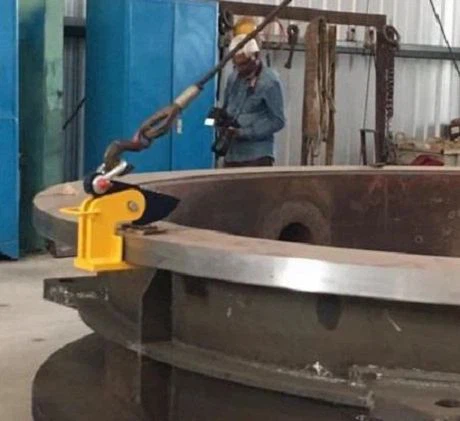

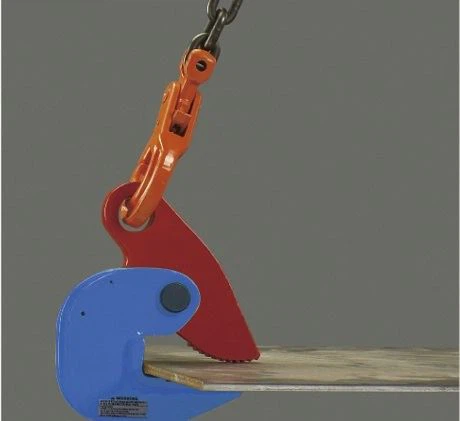

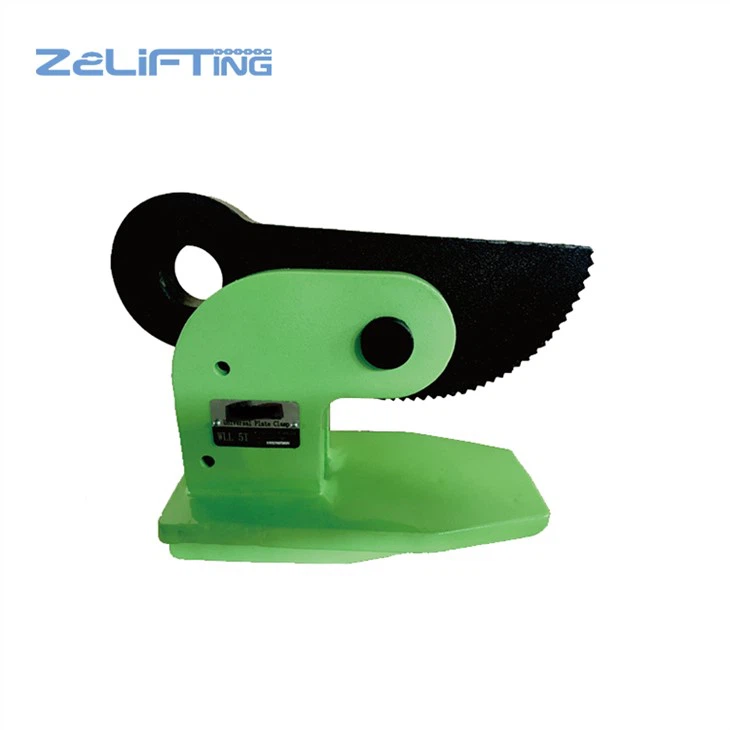

The HPC Horizontal Plate Clamps are for use in the lifting and transfer in horizontal position of non-sagging materials or of bundles of non-sagging material. These clamps must be used in pairs or more.
Manufactured from high quality carbon steel.

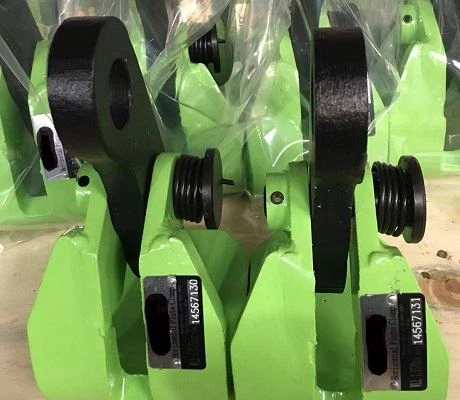

Each product is individually serialized, with Logo, serial number, Jaw opening and W.L.L stamped on body. Serial number is included on the test certificate with maintenance and warranty logbook.
HPC 1.5 has spring close, HPC-3 and HPC-5 has spring close.
|

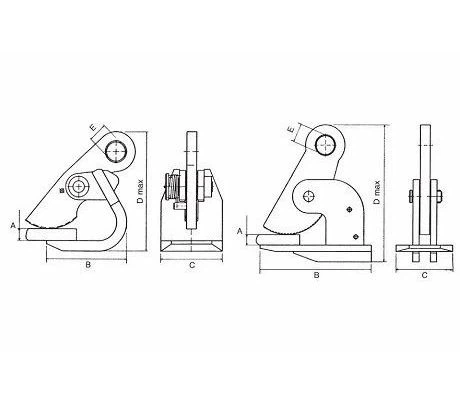

Product Code |
WLL (per pair) |
Jaw Openings (Max) |
A |
B (max) |
C |
D |
E |
Net Weight (per pair) |
|
ZHPC15 |
1.5T |
50mm |
0-50mm |
127mm |
100mm |
218mm |
30mm |
8.6kg |
|
ZHPC30 |
3T |
50mm |
0-50mm |
220mm |
110mm |
270mm |
36mm |
17kg |
|
ZHPC50 |
5T |
60mm |
0-60mm |
260mm |
130mm |
315mm |
40mm |
27.4kg |

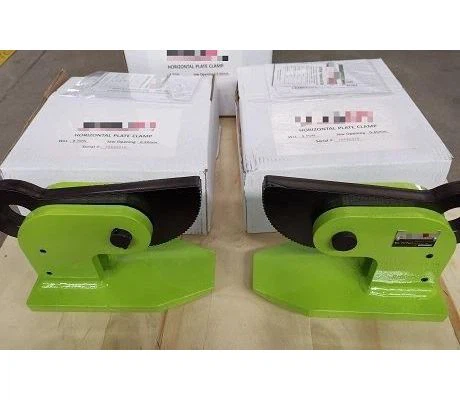

Sold in Pairs.
Single clamps are available if required.
Must not be used with an endless chain sling.
The angle between the chain / rope legs must not exceed 45 Degrees from the vertical.
