Products Description

Flat webbing sling is made of high tenacity is made of high tenacity polyester by advanced international weaving technology, equipment and various sewing methods. According to customer's requirement, the safety factor of sling can reach 5:1, 6:1, 7:1, 8:1, the maximum WLL up to 30 tonnes available upon request, which is produced according to international standard, for color and load capacity.

Kindly see below video of Polyester Webbing Sling

Specifications for Polyester Webbing Slings

* 100% High tenacity polyester.

* Single or double Ply.

* Low elongation.

* With reinforced lifting eyes.

* Manufactured in various lengths and made to order.

* Extra durable WLL tag with clear protective sleeve fitted.

* Safety factor available: 5:1/6:1/7:1 and 8:1

* Complies with EN1492-1 or AS1353

Flat Webbing Sling Data





	M=1.0	M=0.8	M=2.0	M=1.9	M=1.7	M=1.4	M=1.0	M=1.7	M=1.4
Colour Coded According to EN1492-1	VERTICAL WLL kg	CHOKE WLL kg	BASKET WLL kg	30° WLL kg	60° WLL kg	90° WLL kg	120° WLL kg	60° WLL kg	60°CHOKE WLL kg
WLL 1T	1000	800	2000	1900	1700	1400	1000	1700	1400
WLL 2T	2000	1600	4000	3800	3400	2800	2000	3400	2800
WLL 3T	3000	2400	6000	5700	5100	4200	3000	5100	4200
WLL 4T	4000	3200	8000	7600	6800	5600	4000	6800	5600
WLL 5T	5000	4000	10000	9500	8500	7000	5000	8500	7000
WLL 6T	6000	4800	12000	11400	10200	8400	6000	10200	8400
WLL 8T	8000	6400	16000	15200	13600	11200	8000	13600	11072
WLL 10T	10000	8000	20000	19000	17000	14000	10000	17000	14000
WLL 12T	12000	9600	24000	22800	20400	16800	12000	20400	16800

The max. WLL upto 25T upon request.

Details of polyester webbing slings

20210816141905423ce707da3f4030b97c80e2b8089561001

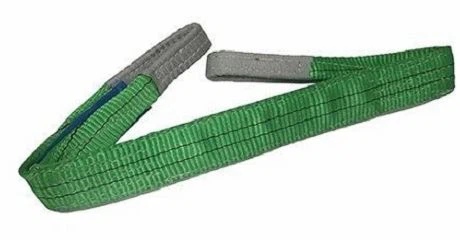

Polyester rigging lifting slings are made with a flat loop eye on each end. The loop eye opens on the same plane as the sling body.

20210816142037aef9f928351c43d2af0cf03fe8dd6571002

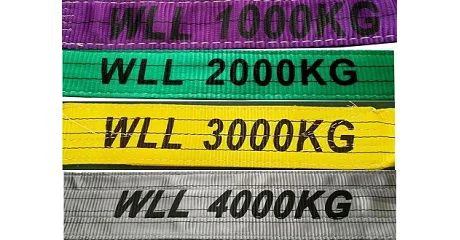

WLL will be marked on all straps.Do not use sling if there is any sign of cut webbing, snagging, heat or chemical damage, excessive wear, damaged seams, any other defect or presence of grit, abrasive materials or other deleterious matter

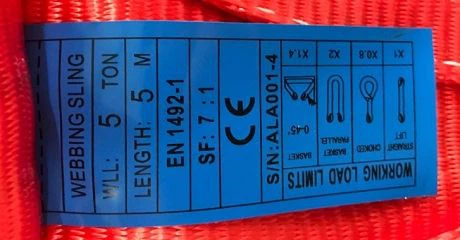

Normal used blue label.For flat webbing sling or round sling, if the material is high tenacity polyester, then the label should be in blue color. Blue color and black letters are the standard ones.

20210816142240edeb9f234c6249e4b45d9c0393022ca2001

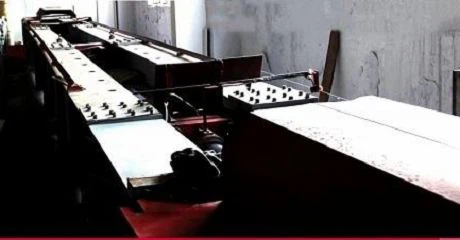

Breaking testBreaking test pass rate 100%, and the data can reach 110% to 130% of the standard. Meeting Australian, American, European standards, CE/GS certification.

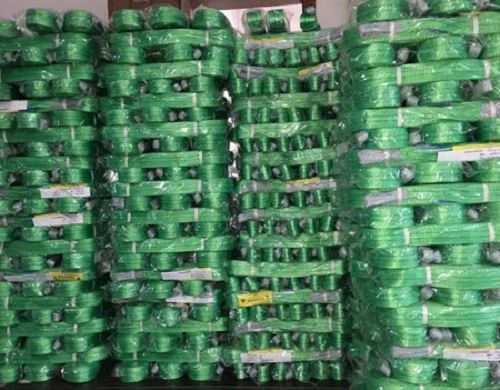

20230324155405c9d91a1bd5c74dafa0c901f4854b8e9f001

202303241554296a98b01d3a664c1aa97412fb2364f021001

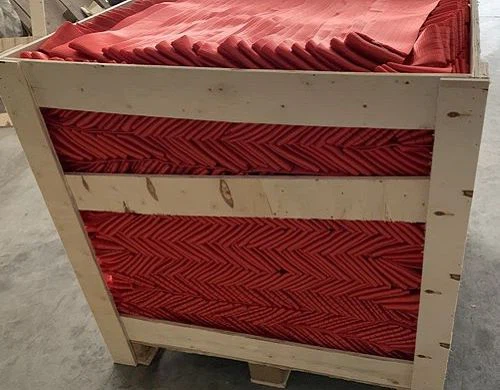

2023032415543778cb75f0f5e64642a677edab1ba54eeb001

Production Line

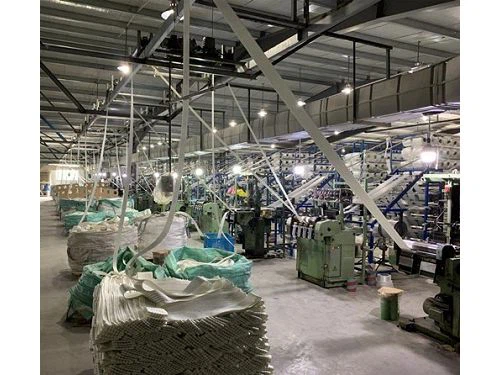

Some parts of webbing sling workshop.

202303241449567efeea2ed3f54b798320219361e92cf0001

lift sling straps

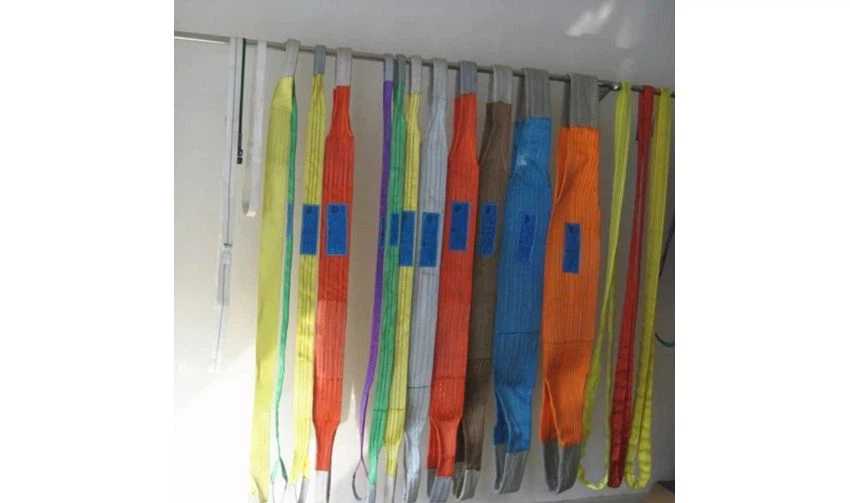

Some parts of sample room for Polyester webbing sling, ratchet tie down.

202303241533442a8df89a29274bf48dd719da06226c65001

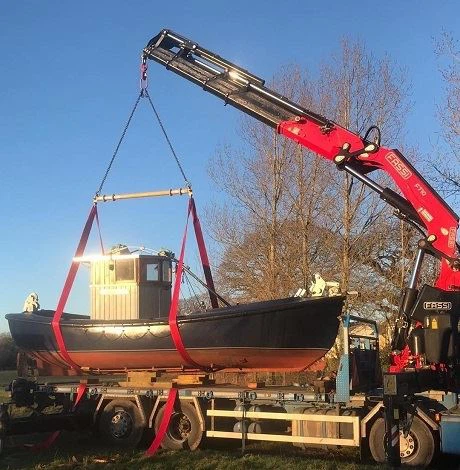

Application Situation

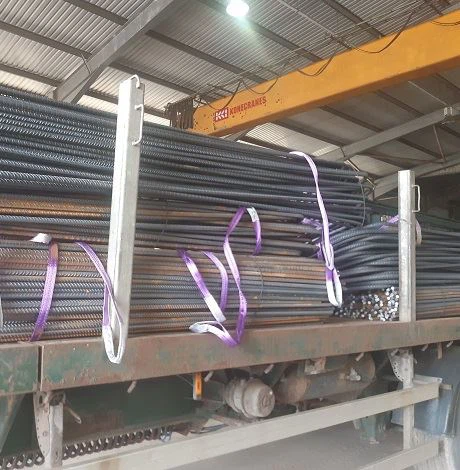

1t Eye Type Polyester Flat Webbing Sling(001)

FAQ

Q: Can I get a (free) sample?

A: Sample Yes. Free cost if the quantity is small or value is not too high with the express charge covered by the buyers. And after receiving the first formal order, we can deduct the sample cost from it. Everything can be negotiated for a sincere cooperation.

Q: What's your payment terms?

A: We accept T/T or L/C in USD/RMB/EUR. Normally, when the total amount is no less than $10000, it's T/T 30% deposit and balance payment against B/L copy; when the total amount is less than $10000, it's T/T 100% in advance.

Q: What's your MOQ?

A: Different products with different MOQ. Please contact us to confirm. For trial order, we can support on quantity, so you can test our product quality and our service first. But generally, we are not doing retailing for we are supplying to distributors & importers.

Q: How to order the products I need?

A: Please send us inquiry with detailed production information, size, quantity, packing requirement you need. If possible, kindly attach reference photos to avoid any misunderstanding.

Q: What product information should I send in my inquiry?

A: For Webbing Sling, please inform:
1) Safety Factor
2) The layer: Double-ply or Single-ply?
3) Size: W.L.L. and Length
4) Quantity for each size you need
