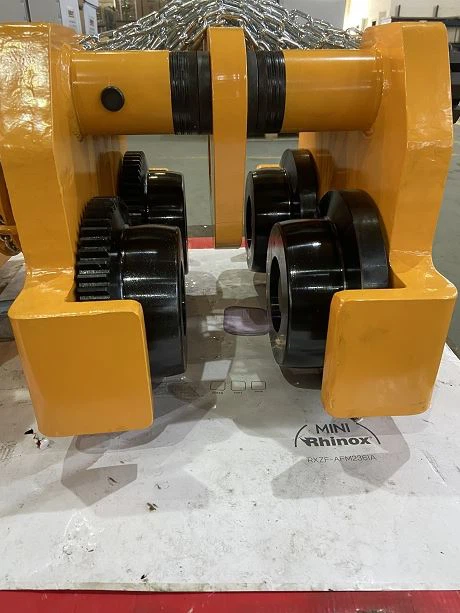

Geared Beam Trolley is an industrial-grade unit that meets demanding lifting applications. This lightweight and robust geared beam trolley features gearing for positive load positing. Designed to fit most I-, S- and W-Beams, this geared beam trolley has precision ball bearing trolley wheels, anti-drop plate and a durable baked enamel paint for added protection.

Each unit includes a ID tag for identification and an individual test certificate and serial number for traceability. Similar to the Push Trolley the geared version allows a hand chain to be pulled much like on a Chain Block

FEATURES

● Capacity from 500 KG to 30.000 KG

● Anti-drop plate design ensures additional safety and also prevents damage to wheels.

● Extended beam width available.

● Smooth and easy movement.

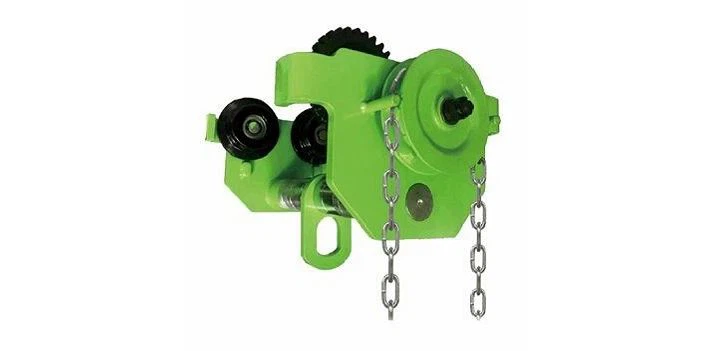

202108161042508a0469e4924a40b281a4cfe9ce0fba4e001

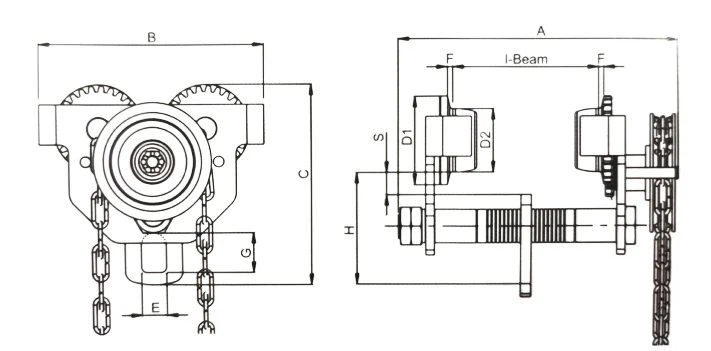

Model	Capacity (Ton)	Min.Radius Curve (m)	I-Beam Flange Width (mm)		Dim A (mm)		Dim B (mm)	Dim C (mm)	Dim E (mm)	Net Weight (KG)
Model	Capacity (Ton)	Min.Radius Curve (m)	a	b	a	b	Dim B (mm)	Dim C (mm)	Dim E (mm)	a	b
ZGT 1/2	0.5	0.8	50-152	50-203	272	322	194	158	28	10	10.5
ZGT 1	1	0.9	64-203	64-305	334	436	236	196	32	14.5	16
ZGT 2	2	1.0	88-203	88-305	343	445	268	226	42	22	24
ZGT 3	3	1.2	100-203	100-305	357	459	322	266	52	34	38
ZGT 5	5	1.3	114-203	114-305	373	475	362	301	62	47	53
ZGT 10	10	1.7	125-203	117-305	423	525	442	396	72	88	94
ZGT 20	20	3.5			498	600	555	498	95	165	174
ZGT 30	30	6.0			-	673	710	598	105	-	337

Available with custom hand chain lengths to suit your drop height, perfect for heavier loads that are hard to push.

Normally suited for the movement of chain hoist and other items of lifting equipment, it's ideal for use in garages, workshops, warehouses and other areas where machines are installed or where cargo is lifted, especially places without power equipment to do the work.

Installation of Geared Beam Trolley

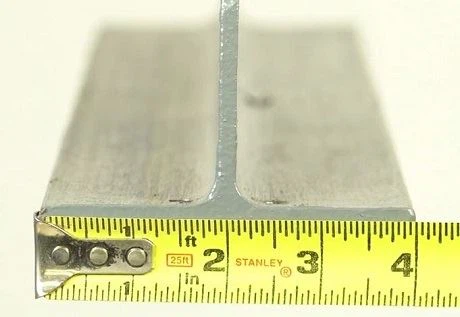

Measure the width of the runway beam.

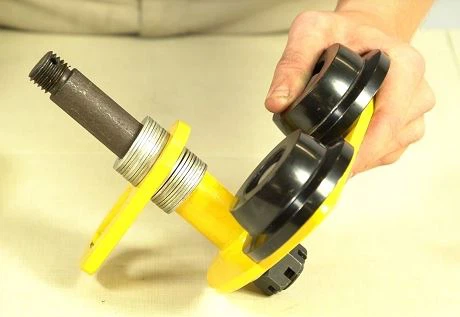

Assemble the suspension plate and required number of spacer washers to the inside of the trolley side plates

20210816101442bf8678d122bf4e5fbc840d852d91c092001

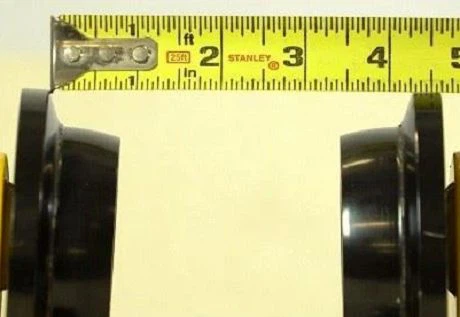

The dimension between the trolley wheel flanges should be larger than the beam flange.

202108161014359fc594e51a7e4845ad59cb0f56cf8e9d001

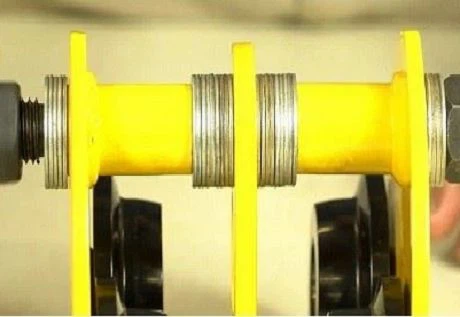

Assemble the remaining washers to either side of the trolley side plates, and fit the nuts to the hanger pin.

20210816101534fe05a98e467c4a6e8de2535f2a551866001

Assemble the remaining washers to either side of the trolley side plates, and fit the nuts to the hanger pin.

20210816101702cb0a936c3f644be3abd1278b4d808add001

Finished

With the trolley loosely assembled, spread the side plates allowing the trolley wheels to be placed over the beam flange, so that the trolley will properly sit on the beam.
