Permanent Magnetic Lifter

Permanent Magnetic Lifters also known as permanent magnet suction lifter, magnetic crane, magnetic lifter, lifting magnet, lifting permanent magnet, permanent magnet, etc.

It use high-performance Nd-fe-B magnetic material makes it smaller, lighter, stronger in holding force, and has a unique magnetic circuit design with almost zero remanence.

1. Small structure, compact shape, easy to operate
2. High-performance permanent magnetic material, no demagnetization
3. No need for electricity or other power support when working
4. Advanced and scientific magnetic circuit balance design, strong holding force, almost zero residual magnetism, safe and reliable
5. The maximum pull-off force is 3.5 times of the rated lifting force, and the safety factor is high

Permanent Magnetic Lifters are suitable for handling steel plates, iron blocks and cylindrical iron materials, such as mechanical parts, punch dies and various steel materials.

Special color for our Australia customer

300KG

1000KG with handle

with Tag

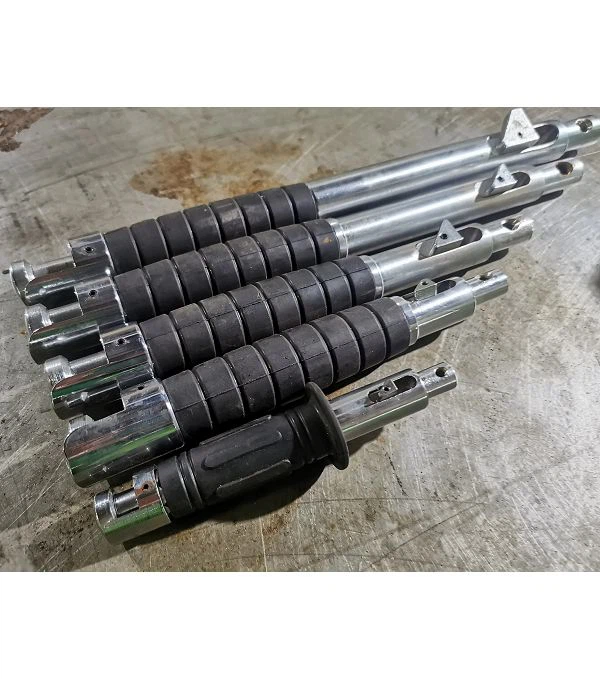

Handles

1. When hoisting, first clean the surface of the workpiece to be hoisted. If there is rust and thorns, it should be cleaned. The center line of the permanent magnet jack should preferably coincide with the center of gravity of the workpiece, then place the jack on the working plane, and rotate the handle from the "-" position to the "+" direction to the limit pin. Check whether the security inclined block of the handle is automatically locked, and then lift it.

2. When the workpiece is lifted, it is strictly forbidden to overload, and it is strictly forbidden for the human body to pass under the workpiece. The temperature of the workpiece to be lifted and the ambient temperature are not greater than 80 degrees, and there is no severe vibration and impact.

3. When lifting the cylindrical workpiece, the contact angle between the B-shaped groove and the workpiece should be kept as two straight lines, so its lifting capacity is only 30%-50% of the rated lifting capacity.

4. After the lifting is completed, press the handle button inward, and the security key on the handle is separated from the security pin. The handle is rotated from the "+" to the "-" direction to the limit pin. Keep the jack in a closed state, and disengage the workpiece from the jack.
