Products Description

The main feature of Carbon Steel ferrules is that they allow the splicing of the wire rope eye and swaging it under the sleeve, to prevent the wire from becoming un-plaited.

Using this type of ferrules to swag Flemish Eye slings and thus achieving working loads limits higher than swaging using aluminum sleeves.

Characteristic

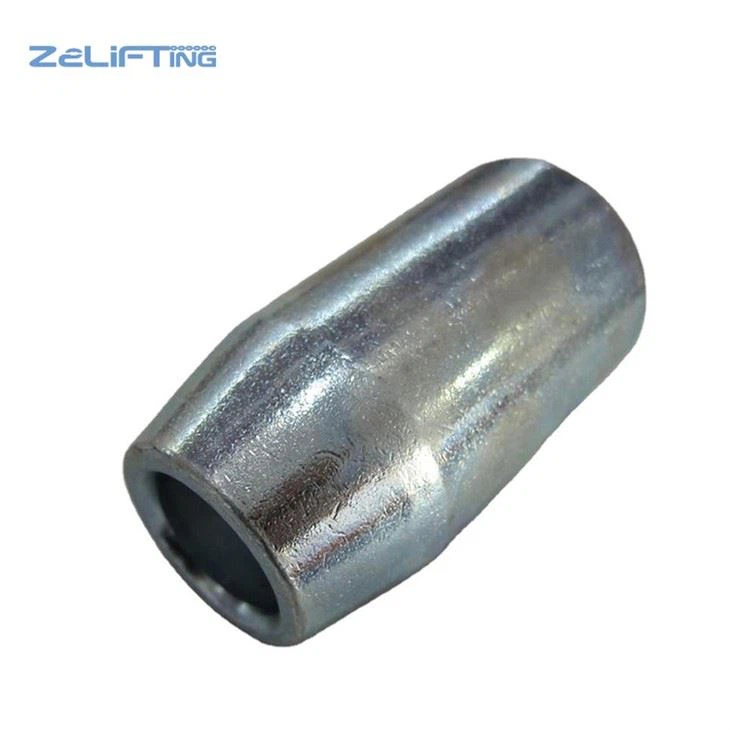

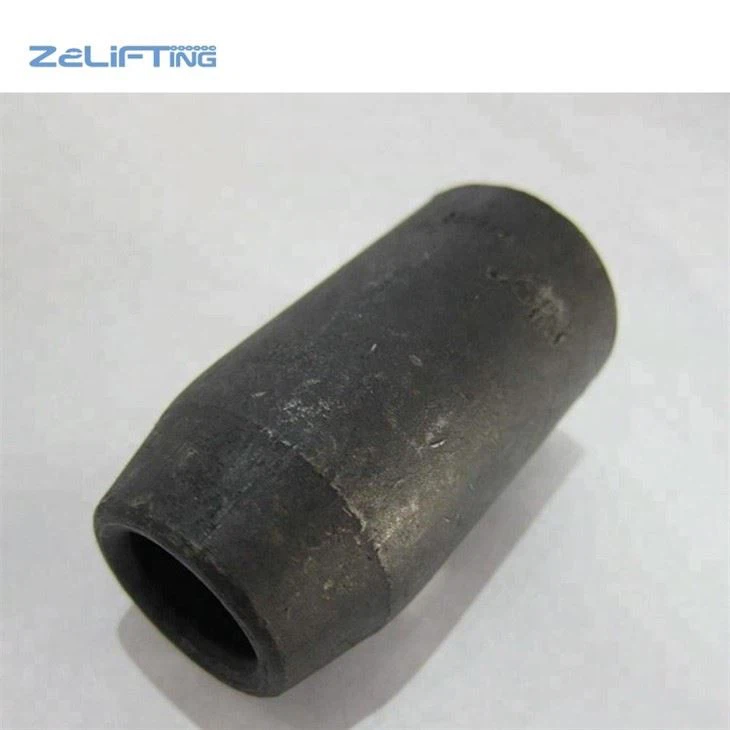

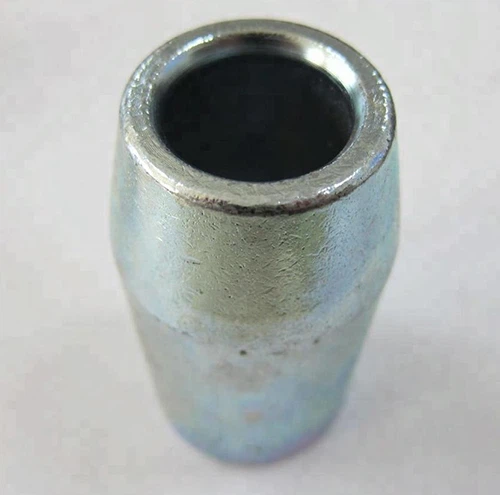

Flemish Eye Steel Swaging Sleeve S-505

· Place of Origin:China

· Brand Name:Z2lifting

· Product name: Wire Rope Sleeves

· Standard:U.S. Type

· Material:Steel

· Surface Treatment:Self-color

· Technology:Weldless

· Application:Wire Rope Fittings

· Usage:Wire rope loop

· Packaging:Polybag, carton or as per customer's requirements

· Special specifications can also be produced according to drawing and sample.

Detailed Pictures

Recommend to use 6x19, 6x25, 6x29, 6x37 IPS or XIP (EIP), FC or IWRC wire rope. If using any other type of construction or grade of wire rope, break load testing upon termination is recommended to examine the correct and adequate swaging process.

Application of Flemish Eye Sleeves

Carbon steel ferrules are typically used when corrosion, higher temperature and special wear and tear environments are demanded. They are also used in cold environments.
