Products Description
Synthetic Rope Thimble is commonly used in the commercial marine industry, these thimbles are an excellent choice for spring lines and mooring lines.
Dimension of Synthetic Rope Thimble
| ROPE DIA / mm | A/mm | B/mm | C/mm | D/mm | E/mm | F/mm | G/mm | kg/pc |
|---|---|---|---|---|---|---|---|---|
| Ø16/Ø22 | 111.5 | 65 | 32 | 10 | 37 | 28 | 35 | TBA |
| Ф64 | 274.5 | 159 | 102 | 54 | 95 | 76 | 79 | 7.9 |
| Ø48/Ø56 | 247 | 149 | 92 | 44 | 85 | 70 | 76 | 5.3 |
| Ф112 | 477.5 | 280 | 184 | 104 | 170 | 140 | 145 | 30 |
| Ф44 | 205 | 140 | 86 | 42 | 64 | 52 | 54 | 3.4 |
| Ø88/Ø96 | 403.5 | 241 | 156 | 86 | 140 | 114 | 117 | 26.4 |
| Ø32/Ø40 | 196 | 127 | 85 | 42 | 57 | 46 | 50 | 2.25 |
| Ф80 | 349 | 217.5 | 127 | 70 | 108 | 89 | 98 | 14.45 |
| Ф72 | 316 | 194 | 120 | 68 | 102 | 83 | 89 | 12.25 |
| Ø24/Ø30 | 146.5 | 90 | 51 | 28 | 47 | 37 | 40 | 1.25 |

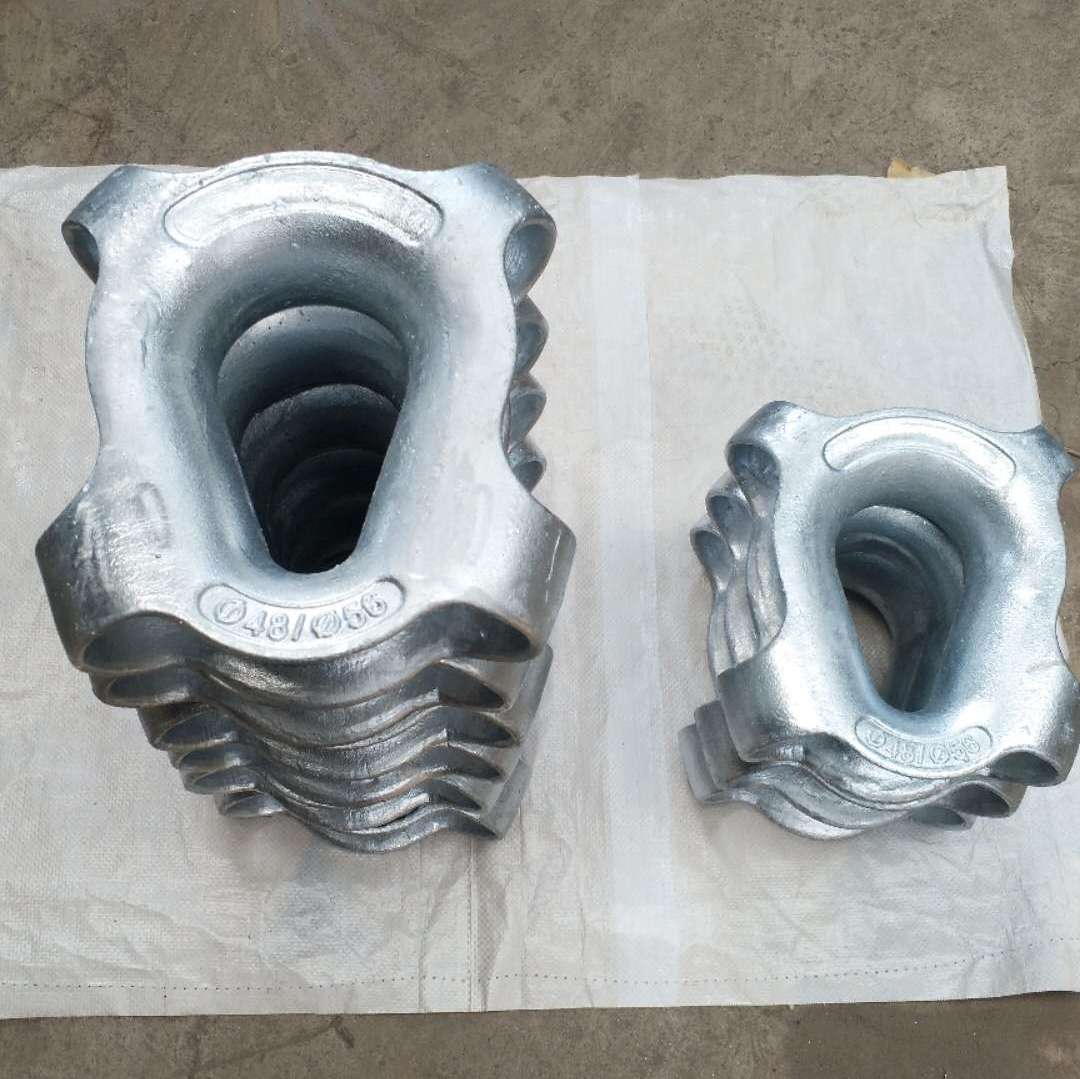

Detailed Pictures
Available surfaces: Galvanized, Hot Dip Galvanized and Painted.
Self-Color
Hot Dip Galvanized
Usage Environment
This Synthetic Rope Thimble is a very good choice for Synthetic Rope, make safer when working, made with precision cast super alloy steel.
The generous inside dimension allows the thimble to fit our special Marine Towing Shackles or large regular Shackles.
More Styles
Australia Thimble
DIN6899B
JIS Thimble
US G411 Thimble
