Webbing belt is the semi-finished polyester flat webbing slings and endless slings made by high tensile polyester yarn, has features of resistant to abrasion, UV rays and water absorption.

Specifications

1. Color coded according to EN1492-1

2. Strip lined capacity on each webbing belt for easy identification of the working load limit. Each strip is equal to 1 tonne capacity.

3. 25mm width and multiple for safety factor 6:1 and below. 30mm width and multiple for safety factor 7:1 and above.

Webbing Width (mm)	Colour Coded according to DIN-EN-1492-1	Working load limit of 2-ply webbing sling (t)	Net weight of 200m (kgs)
Webbing Width (mm)	Colour Coded according to DIN-EN-1492-1	Working load limit of 2-ply webbing sling (t)	5:1	6:1	7:1
25	WLL1T	1	14	17	19
30	WLL1T	1	14	17	19
50	WLL2T	2	27	34	38
60	WLL2T	2	27	34	38
75	WLL3T	3	42	50	57
90	WLL3T	3	42	50	57
100	WLL4T	4	55	66	76
120	WLL4T	4	55	66	76
125	WLL5T	5	69	83	95
140	WLL5T	5	69	83	95
150	WLL6T	6	82	98	114
200	WLL8T	8	124	130	160
250	WLL10T	10	156	164	208.6
300	WLL12T	12	186	202	220

Capacity: Standard

Marking: Available

Length: Request

Package: Roll/paper box/pallet

20210816160708a906a744c1e649eb957be2744300c284001

Roll pack

2021081616072506d39346467a4e2aad692cb381450f31001

Paper box pack

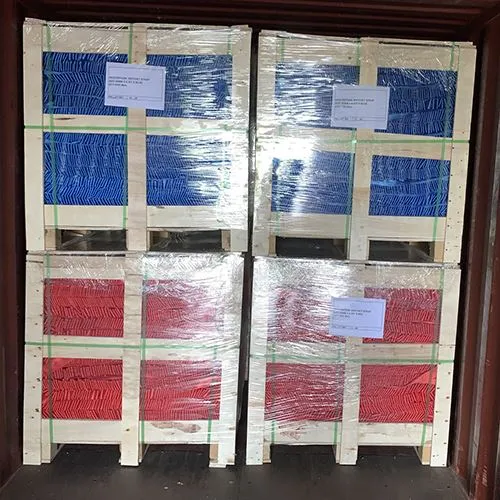

Pallet pack

FAQ

Q: How about sample policy?

A: Sample policy 1 -- The buyer should offer the cost and freight.
Sample policy 2 -- The cost of samples and fright of charge will be turned back to customer when placing the bulk purchase order.

Q: What about the delivery time?

A: It depends on the quantity of order, and if there are other special needs on specification of products. Also, the season is on of the factors of influence. Normally, the products you ordered will be finished within 10-20 days, and we need 5-7 days more to order the ship, so it will take us around 15-30 days to deliver the finished products.

If the order urgently needed, we can start overtime production for you.

Q: If I want to place a mini order?

A: Our minimum order quantity (MOQ) is ONE Piece.

Q: What is type of trading ?

A: The payment sent by West Union, D/P, D/A, T/T or L/C at sight are all accepted..

Q: How about the payment term?

A: T/T, L/C, Western Union and other payment forms.

Q: How about your quality control before shipment?

A: We have a whole QC system, throughout the whole process of production and delivery.
