● Made from high tensile forged alloy steel
● Suitable for G80 and G100 lifting chains.
● Fatigue tested at 1.5 times WLL for 20000 cycles each batch
● Safety Factor: 4:1
● Positive lock latch is self locking when is loaded
● Regular Mark: Size+Capacity+Batch or customized
Grade 80 Eye Sling Hook Specification
 |
Chain Size |
W.L.L |
M.B.L |
Weight |
Dimension mm |
||||
|
L±2 |
M±1 |
d±1 |
E±1 |
D±3 |
|||||
|
6 |
1.12 |
4.48 |
0.3 |
108 |
18 |
9 |
24 |
20 |
|
|
7or8 |
2 |
8 |
0.4 |
133 |
18 |
11 |
30 |
25 |
|
|
10 |
3.15 |
12.6 |
0.9 |
167 |
20 |
15 |
34 |
38 |
|
|
13 |
5.3 |
21.2 |
1.7 |
213 |
29.5 |
19 |
39 |
43 |
|
|
16 |
8 |
32 |
3.2 |
255 |
34 |
23 |
46 |
50 |
|
|
20 |
12.5 |
50 |
5.8 |
305 |
44 |
24 |
48 |
63 |
|
|
22 |
15 |
60 |
8.5 |
348 |
50 |
32 |
71 |
62 |
|
|
26 |
21.2 |
84.8 |
13 |
394 |
63 |
35 |
81 |
64 |
|
|
32 |
31.5 |
126 |
17 |
480 |
76 |
37 |
102 |
88 |
|
Grade 100 Eye Sling Hook Specification
 |
Chain Size |
W.L.L |
M.B.L |
Weight |
Dimension mm |
||||
|
L±2.5 |
H2±1 |
d±1 |
E±2 |
W2±1 |
|||||
|
6 |
1.4 |
5.6 |
0.32 |
111 |
21 |
10 |
18.5 |
20.5 |
|
|
8 |
2.5 |
10 |
0.6 |
137.5 |
27.5 |
11 |
25 |
25 |
|
|
10 |
4 |
16 |
1.2 |
171.5 |
33 |
16 |
28 |
34 |
|
|
13 |
6.7 |
26.8 |
2.2 |
219 |
43.5 |
19 |
38 |
43 |
|
|
16 |
10 |
40 |
3.5 |
260 |
50 |
24.5 |
44 |
50 |
|
|
20 |
16 |
64 |
7.15 |
298 |
56 |
27 |
52 |
55 |
|
|
22 |
19 |
76 |
11.5 |
330 |
62 |
29 |
66 |
60 |
|
|
26 |
26.5 |
106 |
12.2 |
376 |
75 |
35 |
73 |
70 |
|
|
32 |
39.3 |
157.2 |
17.5 |
458 |
89 |
39 |
87 |
81.5 |
|

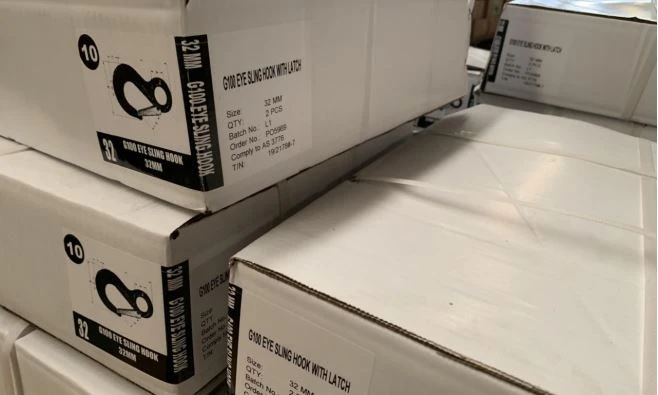

Each Hook is packed with a plastic clear bag and several hooks in a box
|
|
