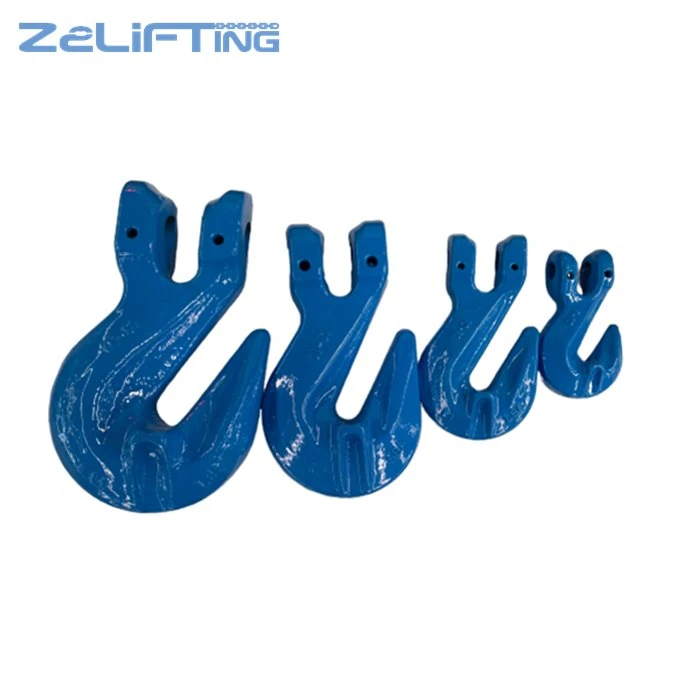

Clevis Grab Hook

● Forged high quality alloy steel-Quenched and Tempered Clevis Grab Hook.

● All load pins are 100% individually inspected and tested. Spare load pins are also available.

● Body of clevis grab hook usually marked with chain size, grade, CE or brand information.

	Chain Size mm	W.L.L tonne	M.B.L tonne	Weight Kg	Dimension mm
					H±2	W2±1	D±0.5	W±1.5	E±1
	6	1.12	4.48	0.25	75	32	8	41	8
	8	2	8	0.32	89	36	9.5	57	10.5
	10	3.15	12.6	0.73	126	46	12.5	70	13
	13	5.3	21.2	1.6	163.5	59	15	89	16.5
	16	8	32	2.8	183.5	70	18.5	109	19
	20	12.5	50	5	219	80	23	130	24
	22	15	60	6.3	254	98	27	151	27

	Chain Size mm	W.L.L tonne	M.B.L tonne	Weight Kg	Dimension mm
					H±2	W2±1.5	D±0.5	W±2	E±1
	6	1.4	5.6	0.22	75	32	7.5	43.5	8
	8	2.5	10	0.34	91.5	36	9.5	53	10.8
	10	4	16	0.82	126	46	12	72	13.5
	13	6.7	26.8	1.75	163.5	59	15	96	16.5
	16	10	40	2.88	183.5	70	17.5	112.5	19.2
	20	16	64	4.84	224	85	24	143	24
	22	19	76	8.3	262	100	27	160.5	27

Generally, one clevis grab hook is provided with a load pin and spring lock pin.

Laser mark for grab hook

Emboss mark for grab hook

 This type of clevis grab hook is with a wing

Each hook is packed with a clear bag

General white box

Special designed box
