Strong all-steel construction
Hardened pressure plate and tongue
Durable baked enamel finish

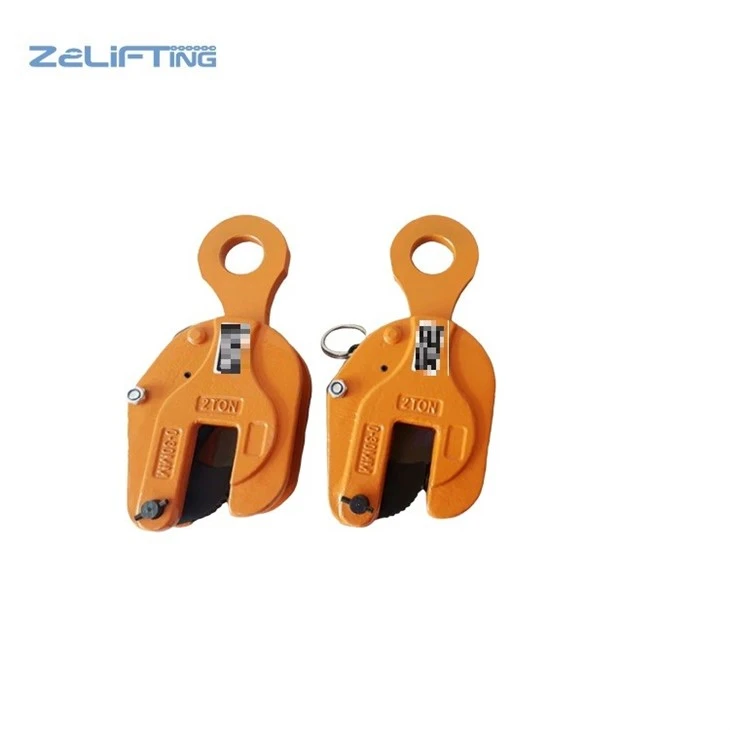

| Vertical Plate Clamps | ||||||||
| Rated Capacity t | Test Load KN |
MAX.Jaw Opening mm |
A/mm | B/mm | C/mm | D/mm | E/mm | Weight/ kg |
| 1 | 14.7 | 22 | ＞22 | 123 | 65 | 275 | 50 | 3.6 |
| 2 | 29.4 | 30 | ＞30 | 137 | 71 | 305 | 55 | 5 |
| 3 | 44.1 | 40 | ＞40 | 165 | 83 | 340 | 60 | 7.7 |
| 5 | 73.5 | 50 | ＞50 | 190 | 100 | 405 | 60 | 14.2 |
| 6 | 88.2 | 60 | ＞60 | 238 | 116 | 476 | 80 | 21 |
| 10 | 147 | 76 | ＞76 | 338 | 134 | 650 | 100 | 40 |
Univeral/ Vertical Lifting Steel Clamp
Most of the time, vertical steel plate clamps are used alone or shared by two. The lifting method is mainly fixed vertically on one side of the steel plate. Of course, this position should be selected at the center of the side of the steel plate. The locking device is fixed.
Horizontal Plate Clamp
Horizontal plate lifting clamps generally adopt multiple sharing methods, and the hoisting target is usually a large steel plate, and the distribution of horizontal hanging steel clamps must be even and reasonable to ensure the balance of the lifting operation.
