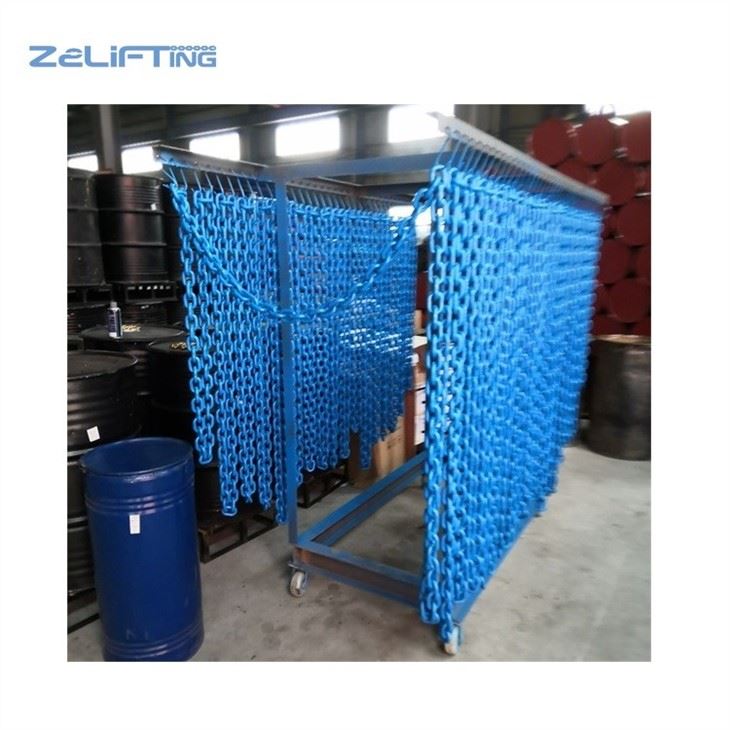

Products Description
●Grade 100 lifting chain is manufactured from Grade 100 Alloy Steel
●Grade 100 chain offers 25% higher lifting capacity for the same size of grade 80 chain
●Surface: Generally in Blue Painted
●safety factor 4:1
●All grade 100 lifting chains have 100% proof load testing and calibrated
We recommend only using Grade 100 chain with Grade 100 components.
EN818-2, AS2321 Short Link Grade 100 Lifting Chain Specification
|
PRODUCT CODE |
NOMINAL SIZE Dn (mm) |
PITCH (mm) |
WORKING LOAD LIMIT WLL (KN) |
BREAKING FORCE (KN) |
|
Z818-2C04 |
4 |
12 |
6.3 |
25.1 |
|
Z818-2C06 |
6 |
18 |
14 |
56.5 |
|
Z818-2C07 |
7 |
21 |
19 |
77 |
|
Z818-2C08 |
8 |
24 |
25 |
101 |
|
Z818-2C10 |
10 |
30 |
40 |
157 |
|
Z818-2C13 |
13 |
39 |
67 |
265 |
|
Z818-2C16 |
16 |
48 |
100 |
402 |
|
Z818-2C18 |
18 |
54 |
125 |
509 |
|
Z818-2C20 |
20 |
60 |
160 |
628 |
|
Z818-2C22 |
22 |
66 |
190 |
760 |
NACM96 Welded Grade 100 Lifting Chain Specification
|
PRODUCT CODE |
NOMINAL SIZE Dn (mm) |
PITCH (mm) |
WORKING LOAD LIMIT WLL (lbs) |
BREAKING FORCE (lbs) |
|
ZN96C7/32 |
5.5 |
17.6 |
2700 |
10800 |
|
ZN96C9/32 |
7 |
22.9 |
4300 |
17200 |
|
ZN96C5/16 |
8 |
26.4 |
5700 |
22800 |
|
ZN96C3/8 |
10 |
32 |
8800 |
35200 |
|
ZN96C1/2 |
13 |
41.6 |
15000 |
60000 |
|
ZN96C5/8 |
16 |
51.2 |
22600 |
90400 |
|
ZN96C3/4 |
20 |
64 |
35300 |
141200 |
|
ZN96C7/8 |
22 |
70.4 |
42700 |
170800 |
|
ZN96C1 |
26 |
83.2 |
59700 |
238800 |
|
ZN96C1-1/4 |
32 |
102.4 |
90400 |
361600 |
Z2 Use Own Automatic Chain Machines to make and control quality of chains
