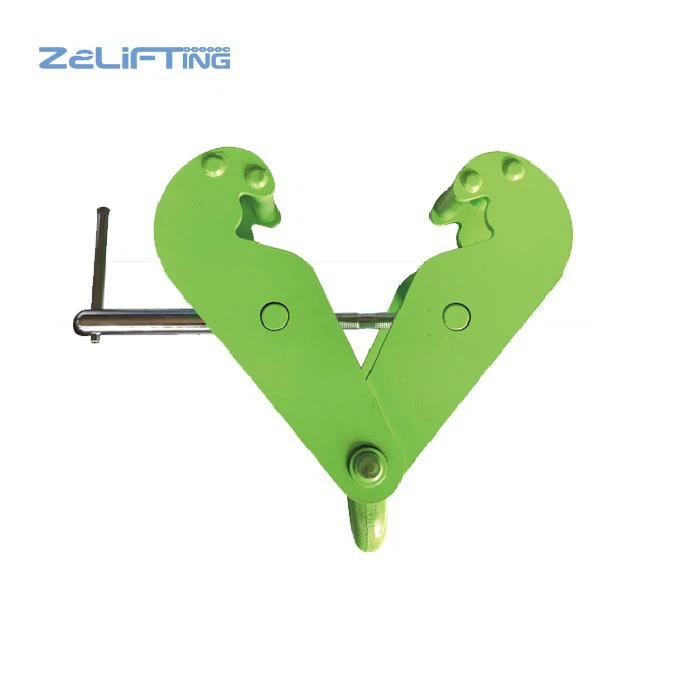

The beam clamps are a brilliant, well designed and reliable accessory. The design of the girder beam clamp means that each model is adjustable and able to fit various beam sizes. It also has a shorter design which is classed as low headroom, meaning that if reach and headroom are issues then this clamp is the one for you.
√ Heavy duty construction allows safe and secure grip in the beam.
√ Powder coated finish.
√ Minimum breaking load is 4 times the W.L.L.
√ Easy and simple mounting.
√ Adjustable to fit a wide range of flange widths and beams.
√ Special jaw design applies the load away from the flange edge, thus reducing flange stress.
|
PRODUCT CODE |
WLL tonnes |
Beam Flange Range mm |
Weight/KG |
Max. A |
Max. B |
Min.B |
C |
D |
E |
Max. F |
Min. F |
G |
|
Z2GCB01 |
1 |
75-230 |
4.5 |
284 |
375 |
180 |
64 |
4 |
218 |
160 |
102 |
45 |
|
Z2GCB02 |
2 |
75-230 |
5.0 |
1284 |
375 |
180 |
74 |
6 |
218 |
160 |
102 |
45 |
|
Z2GCB03 |
3 |
80-320 |
10.5 |
365 |
498 |
220 |
103 |
8 |
271 |
240 |
168 |
58 |
|
Z2GCB05 |
5 |
90-320 |
11.0 |
365 |
498 |
220 |
110 |
10 |
271 |
240 |
168 |
58 |
|
Z2GCB10 |
10 |
90-320 |
16.0 |
356 |
514 |
250 |
120 |
12 |
280 |
242 |
172 |
90 |
The way it secures is through the pin which is threaded to give the adjust ability, once installed this beam is not moving anywhere, simply give regular torque checks to the pin. These clamps are a fixed application and are designed to reduce flange stress.
