30 60 80 100 Grade Stronger Alloy Steel High Strength Lifting Chain

30 60 80 100 Grade Stronger Alloy Steel High Strength Lifting Chain
Product Introduction:
Compared to the same size of traditional G80 lifting chain, G100 lifting chain offers 25% higher lifting strength. This round short link chain is well used to lifting and lashing applications.
Social Share:
Send Inquiry
Chat Now
Description
Technical Parameters

G100 lifting chain is mainly designed for high requirement of overhead lifting areas. It's made of top quality high strength alloy steel in China and has a 25% higher breaking strength than same size of grade 80 lifting chain, which helps you to reduce the size and weight of your chain in same working capacity requirement.



2021081311521686e08b9c18d04173a663fad4cbd86073



EN818-2, AS2321 Short Link G100 Lifting Chain



PRODUCT CODE

NOMINAL SIZE

Dn (mm)

PITCH

(mm)

WORKING LOAD LIMIT

WLL (KN)

BREAKING FORCE

(KN)

Z818-2C04

4

12

6.3

25.1

Z818-2C06

6

18

14

56.5

Z818-2C07

7

21

19

77

Z818-2C08

8

24

25

101

Z818-2C10

10

30

40

157

Z818-2C13

13

39

67

265

Z818-2C16

16

48

100

402

Z818-2C18

18

54

125

509

Z818-2C20

20

60

160

628

Z818-2C22

22

66

190

760



NACM96 Welded G100 Alloy Steel Lifting Chain



PRODUCT CODE

NOMINAL SIZE

Dn (mm)

PITCH

(mm)

WORKING LOAD LIMIT

WLL (lbs)

BREAKING FORCE

(lbs)

ZN96C7/32

5.5

17.6

2700

10800

ZN96C9/32

7

22.9

4300

17200

ZN96C5/16

8

26.4

5700

22800

ZN96C3/8

10

32

8800

35200

ZN96C1/2

13

41.6

15000

60000

ZN96C5/8

16

51.2

22600

90400

ZN96C3/4

20

64

35300

141200

ZN96C7/8

22

70.4

42700

170800

ZN96C1

26

83.2

59700

238800

ZN96C1-1/4

32

102.4

90400

361600



FEATURES



● Forged and Quenched Super Alloy Steel

● At least 25% higher strength than traditional grade 80 lifting chain

● Blue painted or black electrophoresis surface treatment

● Safety factor 4:1



PACKING



Normally packed in steel drums on steel pallets.



WARNING



This grade 100 lifting chain should be inspected by a specialized person at least each month or even more frequently when it is used in severe operating environment.



DETAILS

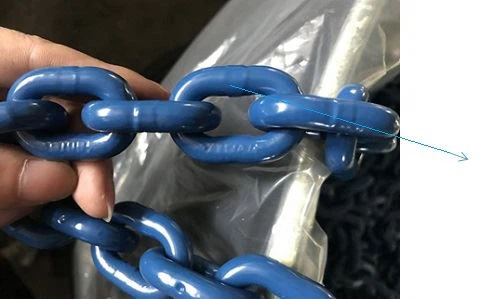

16mm 100 grade chains
Smooth Weld Part & Great Link Shape
202108131156369139de7d37db4841bb9fc0315ec1a146001

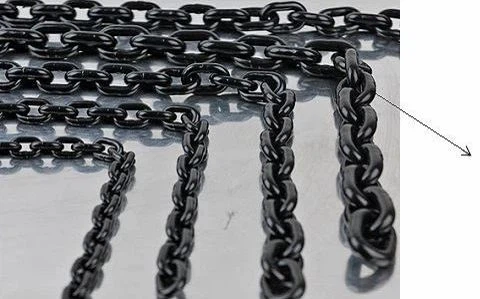

Black Electrophoresis Surface
20210813115648634ee5bd1bda431bb5f53379b1e3e200001
G80 and G100 Lifting Chain Show in Exhibition
2021081311561089f883902a3a4c02a79ca49c2f98ab41001
Clear Stamping & Bright Blue Painted Surface
2021081313151073684c9037e149b3a8dcda545a26dc0b001





BREAKING STRENGTH TEST



g100 lifting chain (2)
Breaking on the weld is not acceptable
g100 lifting chain (1)
Qualified



Z2 FACTORY OVERVIEW



g100 lifting chain (3)



PRODUCTION PROCESS



g80 lifting chain (1)



FAQ



Q: Are you trading company or manufacturer?

A: We are factory. We have more than 13 years experience in lifting field. Mainly focus on make and provide TOP quality products in a moderate price for our customers. And help them to build and expand a long-term business in their markets.

Q: Do you provide samples ? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight. While the freight cost can be reduced in our later orders if we open our business cooperation.

Q: What products do you mainly supply?

A: Besides top quality high strength chain and chain assembly, we also supply lifting rigging, material handling and marine equipment.
