Designed and engineered to perform a specialist task Load Skate Kit provides an uncompromising service when installing, moving or working on heavy loads up to 60 tonne. With precise steering control, maneuvering large machinery or heavy items has never been safer or easier.

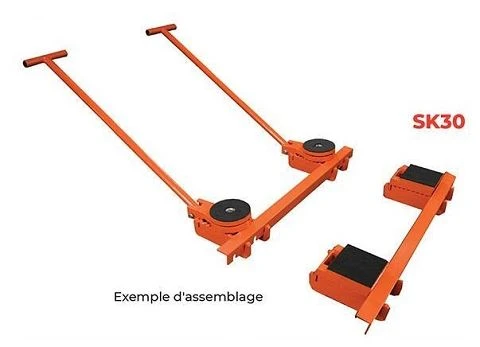

Heavy duty machine skates

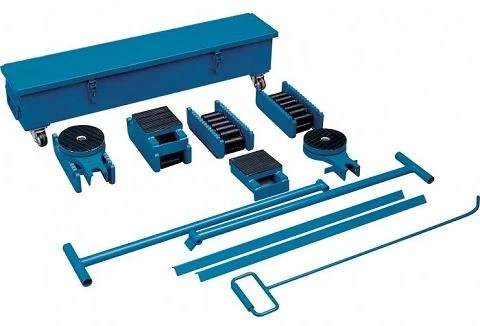

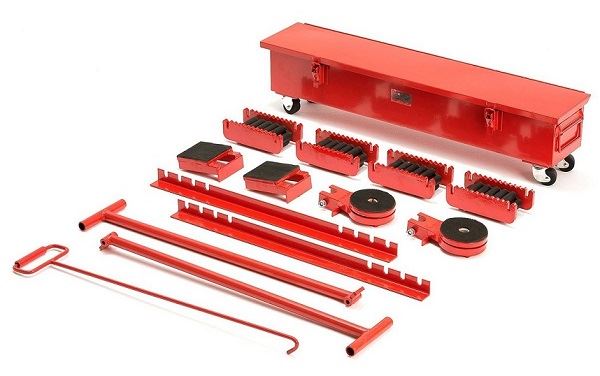

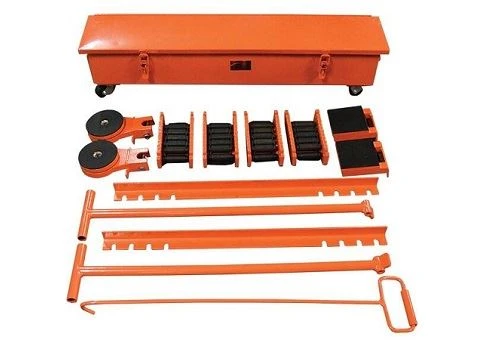

Heavy duty machine skates including: 4 x rollers, 2 x turntables, 2 x leveling plates, 2 x steering handles, 2 x connecting bars, 1 x metal case and 1 x handle hook.
With capacities of 20t, 30t, and 60t it is the operator's responsibility to decide the correct capacity for each specific application. Whenever possible it is advisable to run the units over a flat steel-plated surface, channel sections or rails. The harder the operating surface the less rolling resistance is encountered making the load easier to move. Load Skate Kits are an economical and robust solution for short transport distances.




✔ Professional build quality.
✔ Modular concept allows linking of units.
✔ Robust lockable steel container with nylon castors.
|
Model |
SK20 |
SK30 |
SK60 |
|
|
Capacity |
(tonne) |
20 |
30 |
60 |
|
Length Support |
(mm) |
120 |
120 |
130 |
|
Width Support |
(mm) |
120 |
120 |
130 |
|
Total Height |
(mm) |
108 |
117 |
140 |
|
Rollers Dia. |
(mm) |
Φ18 |
Φ24 |
Φ30 |
|
Swivel Top |
(mm) |
Φ130 |
Φ130 |
Φ150 |
|
Weigh of Set |
(kg) |
50 |
58 |
92 |
